12W UL Direct USB output
■KEY FEATURES
• Universal input :100-240Vac(90-264Vac)
• Complete protection function: OCP. OVP. OLP.SCP
• High efficiency ：meet DOE VI COC V5 Tier2
• Input type : fixed plug type & detachable plug type
• Output type: direct USB output & fixed DC cable type
■KEY APPLICATIONS
Mobile phone Tablet PC Modem
Monitor Audio Humidifier
■CERTIFICATES AND APPROVALS
• Chinese ：CCC • CCC: GB 4943.1
• American：UL FCC • UL : UL 62368-1
• European：CB CE GS LVD • EU UK :EN 62368-1 EN 61558-1
• Australian：SAA • SAA:AS/NZS 62368.1
• Japanese：PSE • PSE: J 62368-1
■Model list and output rating
Model No. | Input rating | Output(Vdc) | Output(A) | Max output (W) |
GW12W-XXXYYYZm | 100-240Vac 50-60Hz 0.3A | 5.0-7.4 | 0.01-2.4 | 12 |
7.5-9.9 | 0.01-1.6 | 12 | ||
10.0-15.0 | 0.01-1.2 | 12 | ||
15.1-19.9 | 0.01-0.80 | 12 | ||
20.0-24.0 | 0.01-0.60 | 12 |
■SPECIFICATION
Iutput Characteristics | Rated input voltage | 100-240Vac |
Operating range | 90-264Vac | |
Rated input current | 0.3A | |
input frequency | 50-60Hz +/-3Hz | |
Power Dissipation（No-Load ） | ＜0.1W | |
Output Characteristics | output voltage | 5-24Vdc(According to customer demand） |
output current | 0.01-2.4A(According to customer demand） | |
Line regulation | Rated voltage±5% | |
Load regulation | Rated voltage±5% | |
Ripple and noise | 120mVp-p Max | |
Turn on delay time | ≤3S | |
Rise time | 100mS max | |
Hold up time | 10mS min | |
Over-shoot | Rated voltage10% max | |
Efficiency | Meet: DOE VI COC V5 TIER2 | |
Protection Characteristics | Over voltage protection | The power supply shall be hiccup mode, when the output is over voltage, and the power supply shall not be damaged |
Over current protection | The output shall hiccup when the over current applied to the output, and shall be self-recovery when the fault condition is removed | |
Short circuit protection | The input power shall decrease when the output is short to GND; the power supply shall not damage, and shall be self-recovery when the fault condition is removed | |
Environmental Characteristics | Operating Temperature | 0….+40℃ |
Non-Operating Temperature | -20….+80℃ | |
Operating Humidity | 10%~90% (Non Condensing) | |
Non-Operating Humidity | 10%~90% (Non Condensing) | |
Safety Standards | Dielectric Strength(Hi-pot) | 3000Vac 10mA 60S or4200Vdc 5mA 60S |
Insulation Resistance | 20MΩ min at 500V DC |

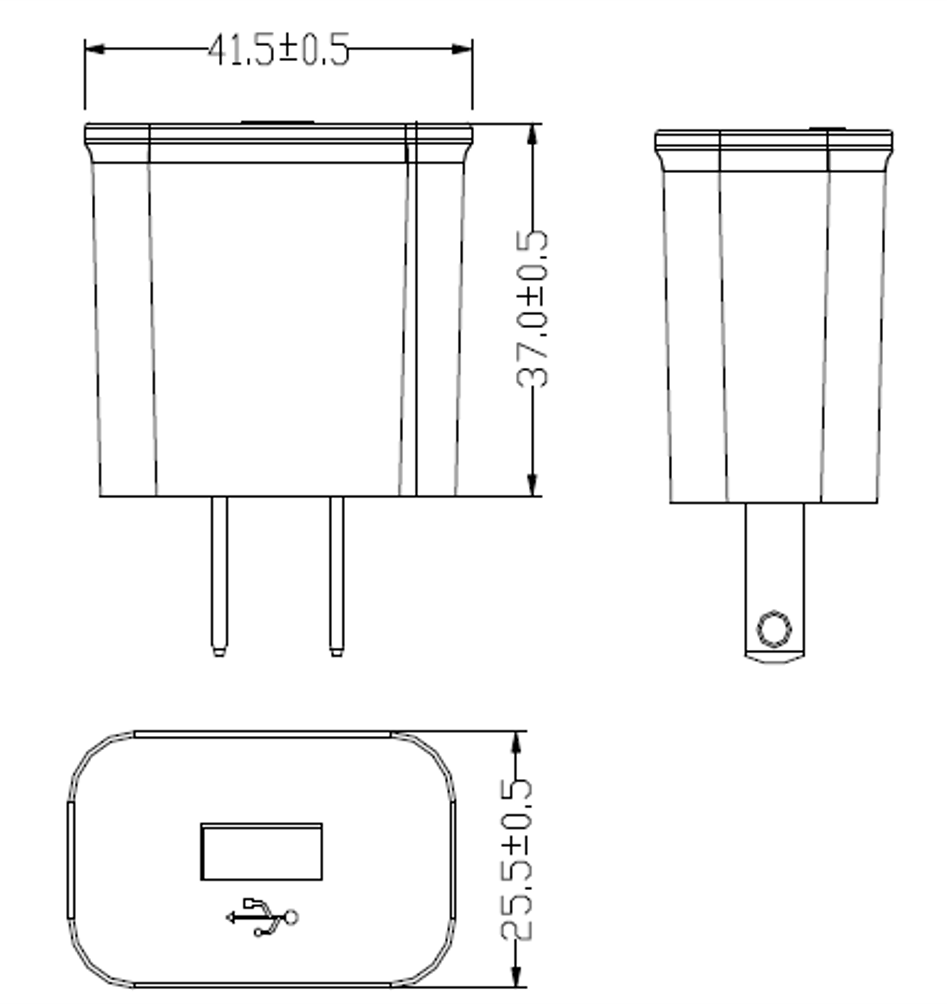

■Appearance Drawing
